“AMECOIL” thread inserts - SCREWLOCK
Amecoil locking thread inserts | |

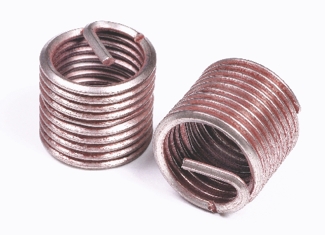

AMECOIL develops, improves and expands its standard and SR thread inserts ranges, as well as its self-locking range. This self-locking series corresponds in all points to the conventional series, the screw threads being locked by polygonal deformation of one or more turns of the thread. This deformation results in a powerful locking on the sides of the screw thread and counteracts the unscrewing effects of dynamic stresses, vibrations and thermal loads. The locking torques obtained are comparable with the values indicated in standard ISO 2320. The stainless steel self-locking thread insert is recognised by its red colour. |
Drilling From +0.1 to +1 mm of the nominal diameter of the screw. |
Tapping Performed using the AMECOIL tap. |
Installation Using tools |
… or those of the SR series, for even quicker installatio. |
Breaking With the AMECOIL impact breaker or automatically. |
Thread insert |
|
LOCKING TORQUE | |||
Dimensions | Max 1st tightening |
Min 1st loosening |
Min 5th loosening |
M3 | 0,43 | 0,12 | 0,08 |
M4 | 0,90 | 0,18 | 0,12 |
M5 | 1,60 | 0,29 | 0,20 |
M6 | 3,00 | 0,45 | 0,30 |
M8 | 6,00 | 0,85 | 0,60 |
M10 | 10,5 | 1,50 | 1,00 |
M12 | 15,8 | 2,30 | 1,60 |
M14 | 24,0 | 3,30 | 2,30 |
M16 | 32,0 | 4,50 | 3,00 |
M20 | 54,0 | 7,50 | 5,30 |
M24 | 80,0 | 11,5 | 8,00 |
Values in Nm quoted from ISO 2320 (class 8 screws) |
GENERAL CHARACTERISTICS | |||
Material | Maximum operating temperature* |
Surface coating options |
Applications |
Standard material Stainless steel 18.8 AISI 304 (1.4301) AISI 302 (1.4310) |
425°C (peak) 315°C (continuous) |
- Dry lubrication - Cadmium plating - Silver plating - Zinc plating - Tinning |
All normal applications in all materials |
Special stainless steels: AISI 304L, 316, 316L, 316Ti, 321 |
Up to 400°C continuously |
Special applications Resistance to acids, corrosion, high temperatures – non-magnetic |
|
Phosphorous bronze |
300°C (peak) 250°C (continuous) |
Cadmium plating | Copper parts. High resistance to some electrolytic couples. |
Inconel x 750 Nc 15 Fe Nba |
750°C (peak) | Silver plating | Thermal power plants Aerospace Aeronautics Turbochargers |
Nimonic 90 Nc 20 C. 18Ti |
538°C (continuous) |
(*) indicative values
